Scale Method

The Scale method scales a graphic item in the X, Y, or Z dimensions.

Examples

p = PLOT(RANDOMU(seed, 20))

p.Scale, 0.5, 0.3





; Need to reset rotation before scaling.

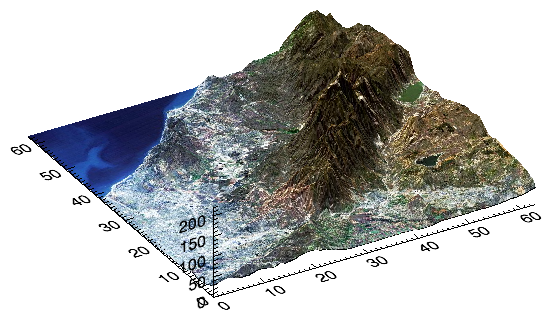

s = SURFACE(/TEST)

s.Rotate, /RESET

s.Scale, 1.5, 1.5, 0.5

s.Rotate, /DEFAULT

Syntax

graphic.Scale, X, Y, Z [, /RESET]

Arguments

X, Y, Z

The scaling factors for the X, Y, and Z dimensions. X, Y, and Z should be greater than 0. A value of 1 indicates no scaling. If Z is not supplied then the default is 1.

Keywords

RESET

Set this keyword to 1 to reset the scale factors to 1.0 before performing any scaling. If RESET is specified then X, Y, and Z are optional.

Version History

8.0

Introduced

See Also

Rotate Method, Translate Method
